Champion Parallel Kit for 1000-3500 Watt Models

This newly designed kit is intended for the use with Champion inverters ONLY, ideally this kit should be used with at least one inverter being 2800W or larger (2800+), and(or) any other Champion inverter that uses the square paralink sockets.

The total output of this kit will depend on the size of the inverters connected to it. The maximum output of the parallel kit is the total amperage of 58A across two sockets or the rated amperage of each socket up to 32A.

This one model is designed for dual markets either UK or EU, it allows any Champion inverter models with wattages 1000-3500 to be connected up in parallel to create an increase in continuous power of up to 95% of the combined running watts.

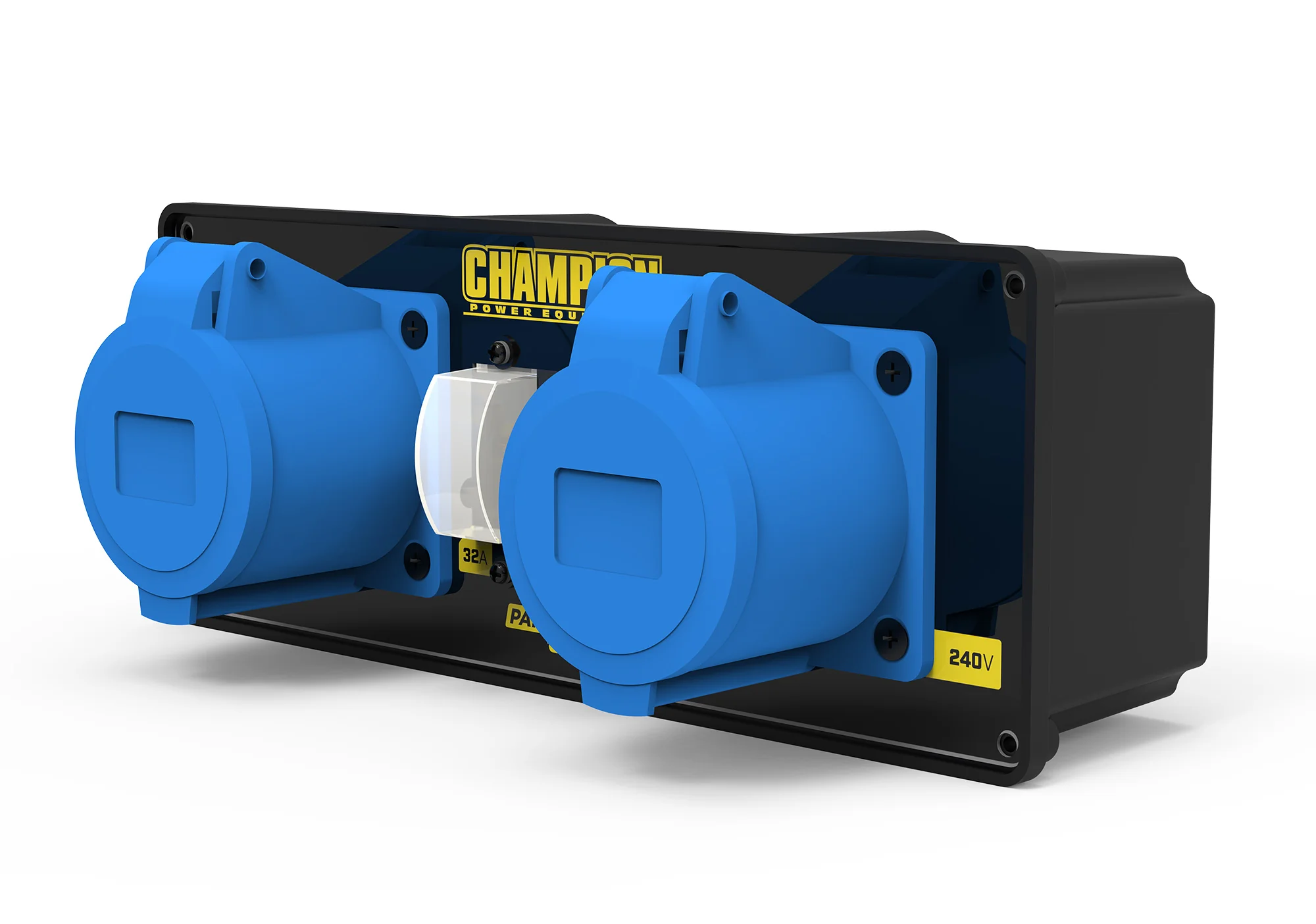

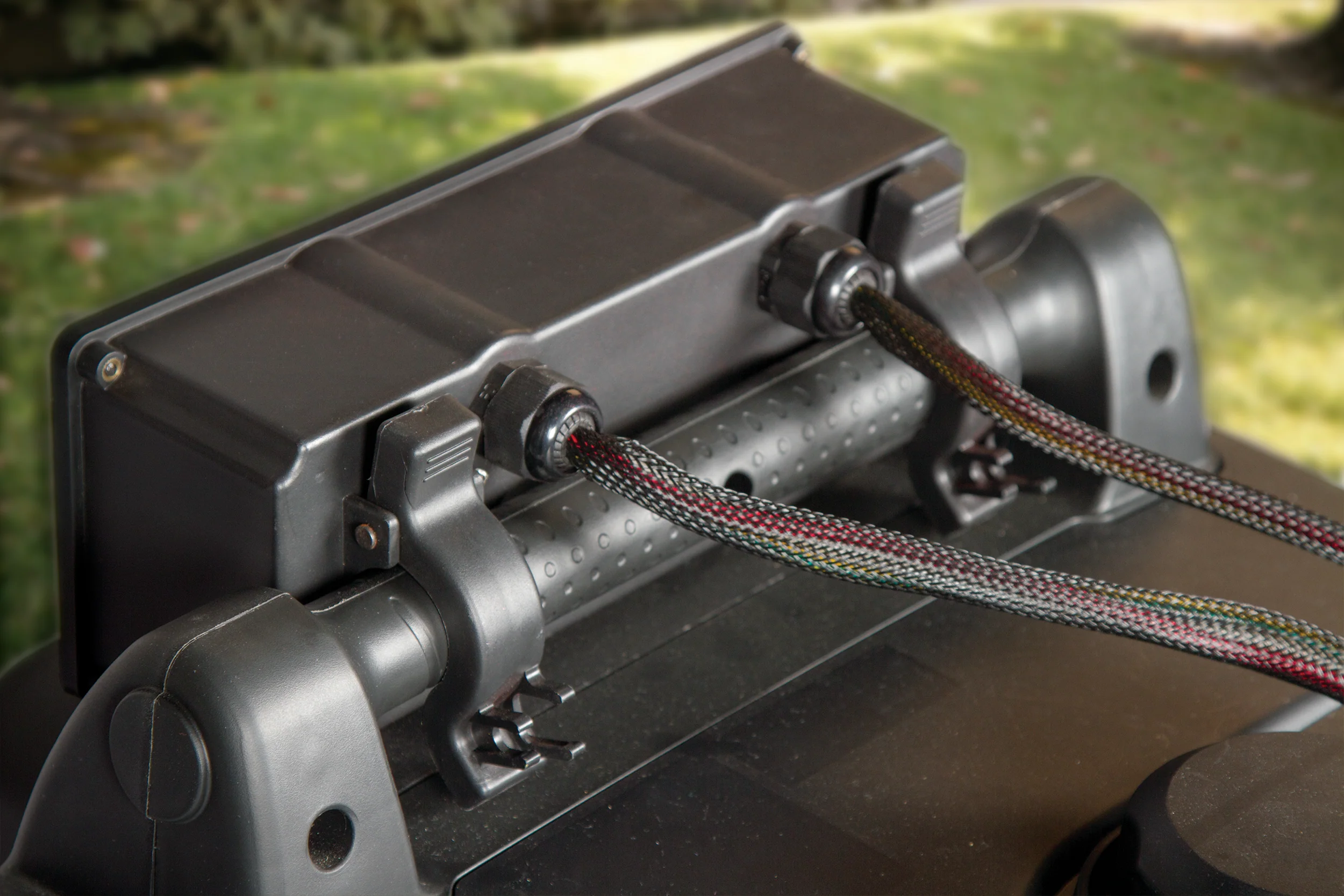

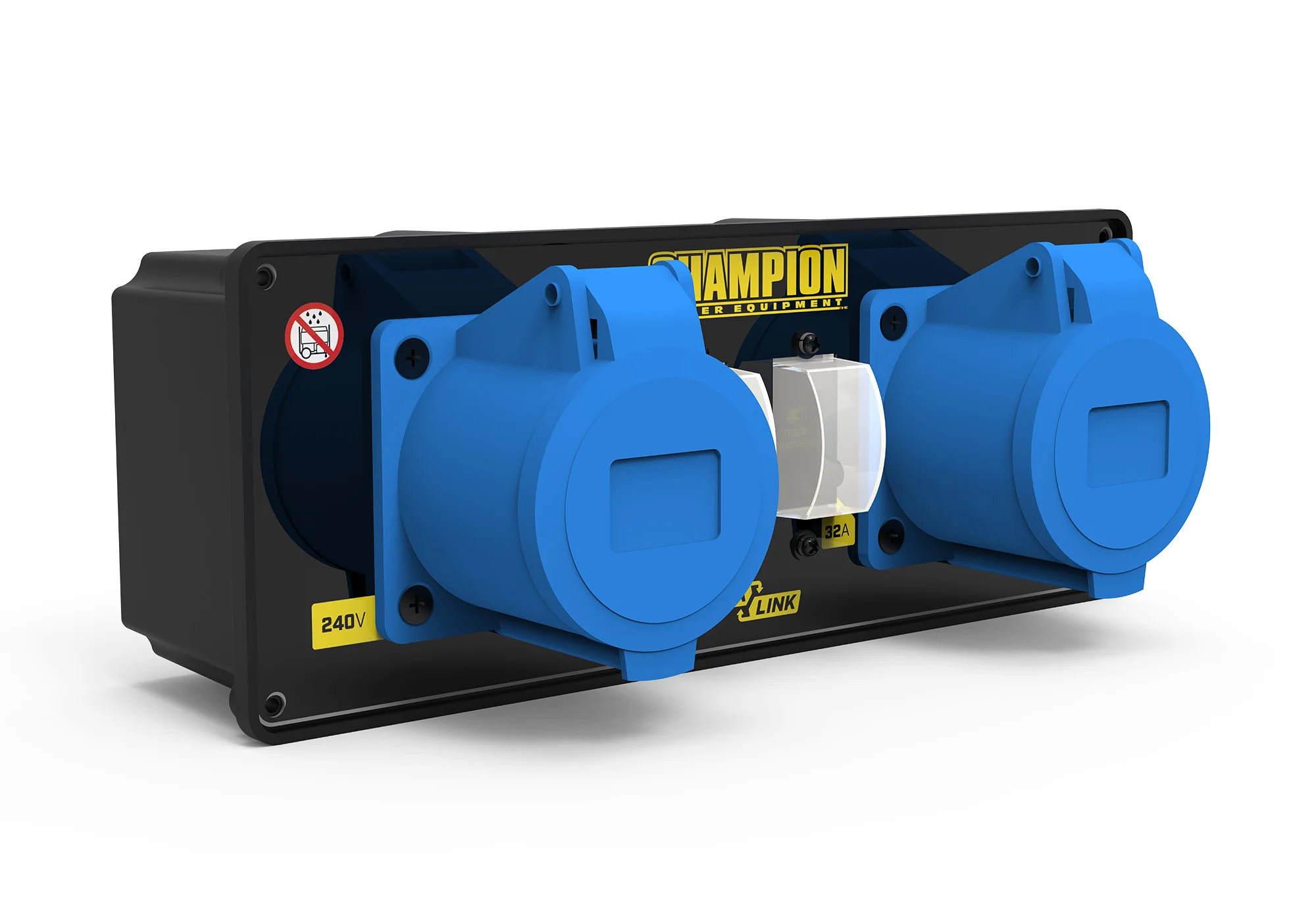

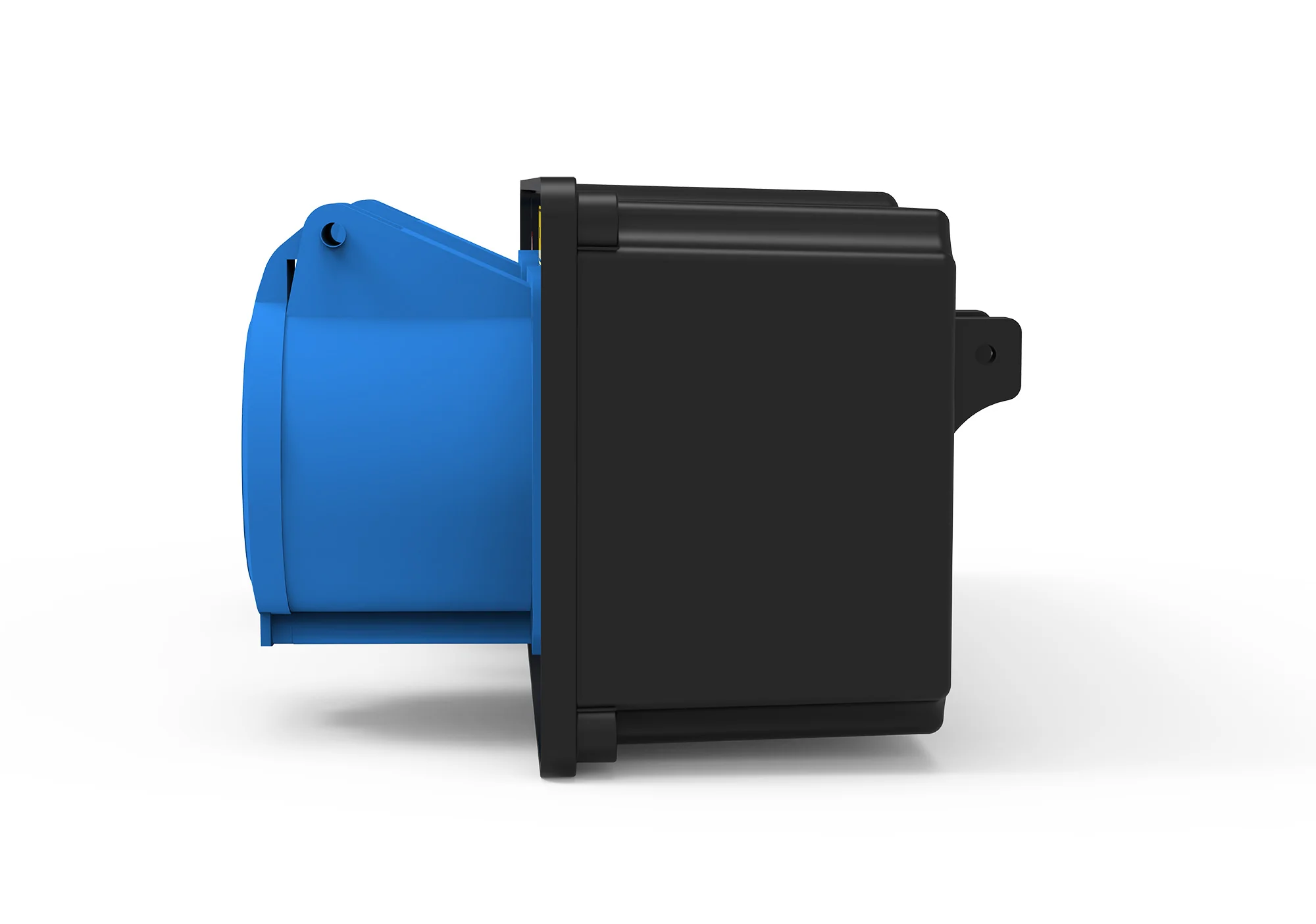

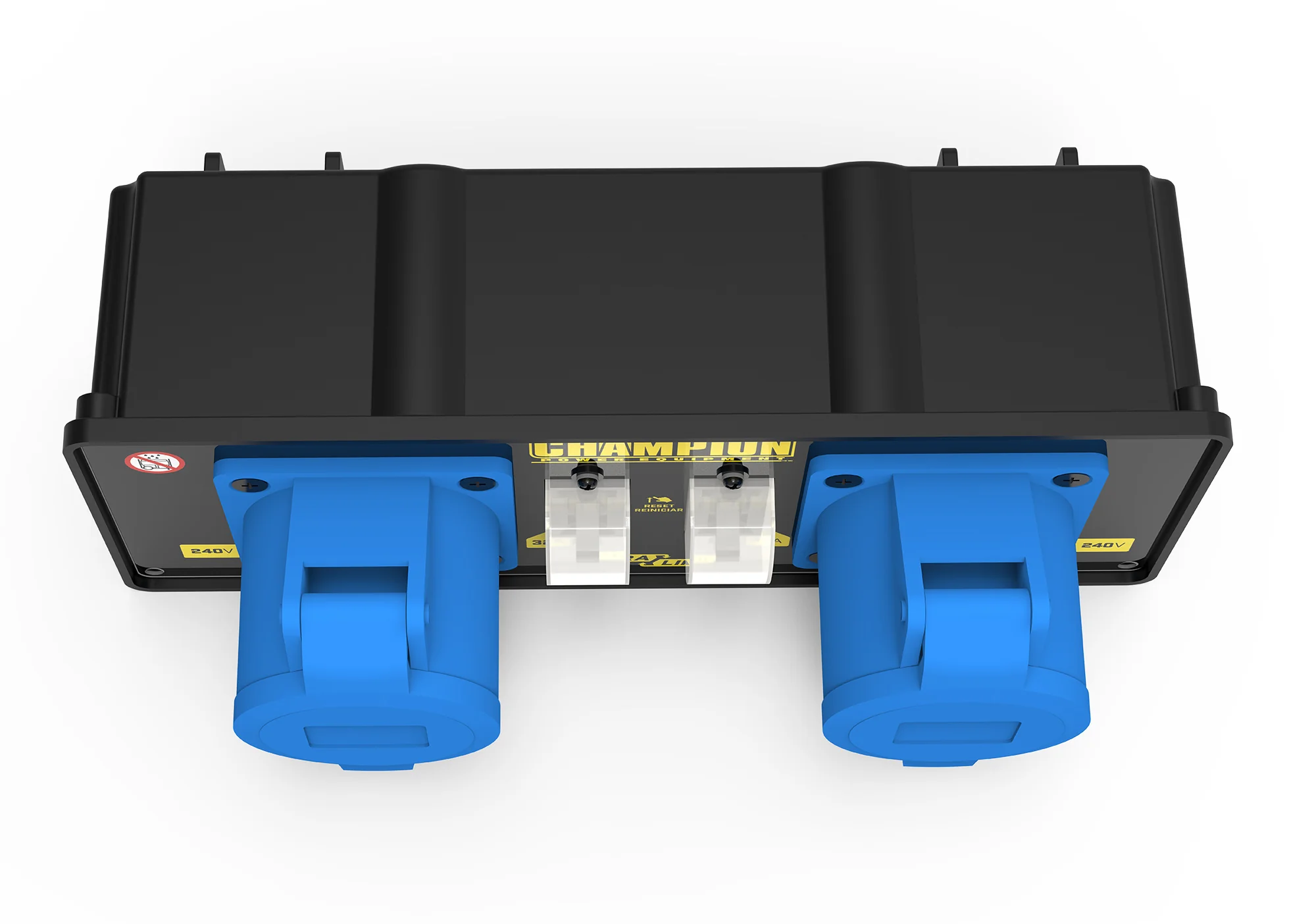

The control box construction is IP54 protected with 2 x 230V 32 amp 3 pin industrial water proof sockets & connection leads to allow easy tool free connection of any Champion inverter using the paralink socket. With a dual clip design it will allow the control box to clamp on to handles to securely whilst the generators are running.

WARNING

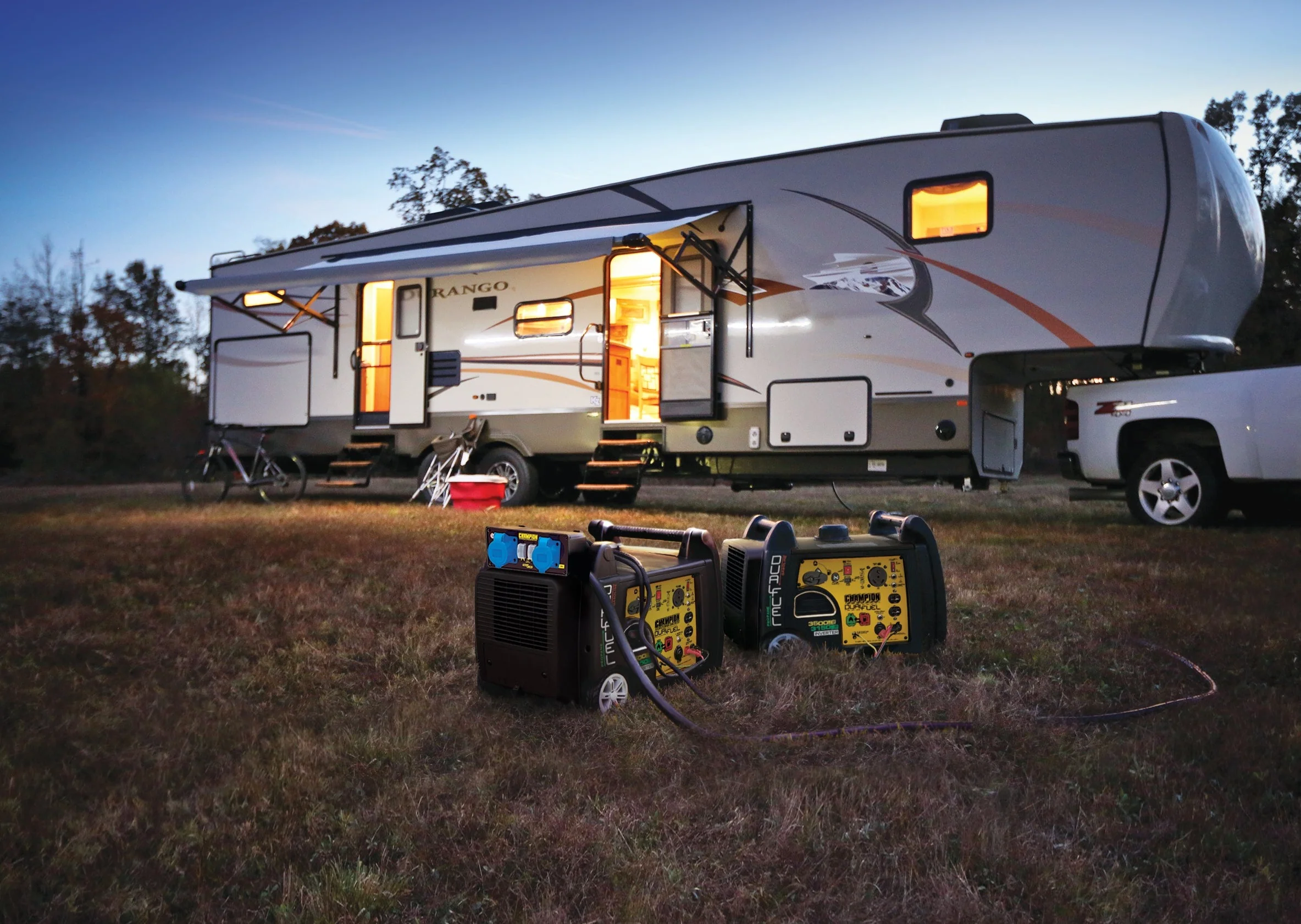

When paralleling always configure generators in a 'V' formation with both exhaust mufflers pointing the same direction away from the control box, leads and each other.

This kit can be used with these models:

• 73001i
• 73001i-P
• 73001i-DF
• 92001i
• 92001i-DF
• 1 x 73001i plus any other Champion inverter with Paralink feature

Expected Power Outputs (95% of combined output)
Inverter 1			Inverter 2			FINAL OUTPUT
Model	Max Watts (Petrol)	Rated Watts (Petrol)	Model	Max Watts (Petrol)	Rated Watts (Petrol)	Max Watts (Petrol)	Rated Watts (Petrol)
92001i (-DF)	2200	1900	92001i (-DF)	2200	1900	4180	3610
			73001i /(-DF / -P)	3500	3200	5415	4845
			CPG4000DHY	3600	3500	5510	5130
73001i /(-DF / -P)	3500	3200	73001i /(-DF / -P)	3500	3200	6650	6080
			CPG4000DHY	3600	3500	6745	6365
CPG4000DHY	3600	3500	CPG4000DHY	3600	3500	6840	6650
